High-Performance Paint Filling Machine for Wall Sealant Applications

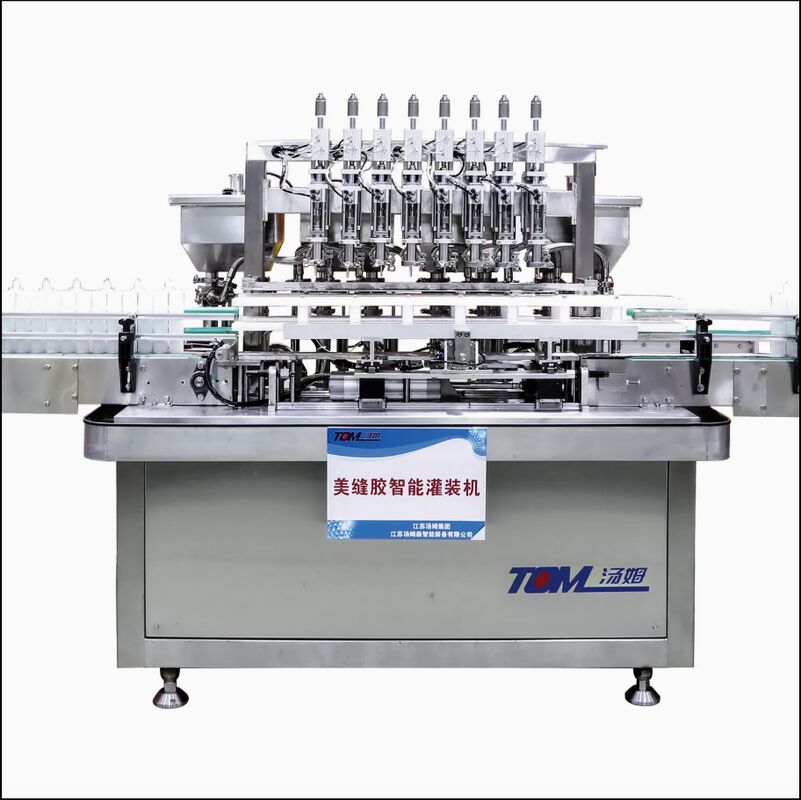

Sealant intelligent Filling Machine

Main features:
Combined material box, one key to switch materials
Inner plug detection, no filling without inner plugs
Head filling, to ensure that the package material is not contaminated
Sealed filling, no overflow





Main Parameters.
Filling output:400 barrels/hour
Filling precision:≤±0.1%.

Main configuration:
1. The whole machine has compact structure, simple transmission, long service life of parts, convenient
maintenance, few wearing parts and low operating noise;
2. High filling measurement accuracy, extremely fast filling speed, no dripping, etc.;
3. The machine has beautiful and elegant appearance, does not pollute the environment, and meets GMP standards;



Main parameters:

Main Parameters.
Filling output:400 barrels/hour
Filling precision:≤±0.1%.




GXXC-16-12 Intelligent Rotary Tracking Filling and Capping Integrated Machine

Applicable bottle type:	Diameter 20-60mm
Height:	50-150mm
Production capacity:	10-100ml ≤ 12000 bottles/hour

TBJ-10Y-A Intelligent Labeling Machine

Size range:	Diameter 20-60mm
Label height:	30-90mm
Length:	40-140mm
Production capacity:	≤ 12000 bottles/hour
Labeling accuracy:	± 1mm

ZZP-2NA Automatic case packer:

Applicable bottle type:	Diameter 20-60mm
Applicable bottle Height:	50-150mm
Carton length:	300-500mm
Carton width:	200-400mm
Carton Height :	100-300mm
Carton capacity:	6-8 boxes/min

Robot palletizer

Maximum payload:	20Kg
Capacity:	4-8 boxes/min
Working radius:	1600mm
Vertical distance:	2100mm

Aluminum foil leak detection machine

Main function:
Detecting aluminum foil sealing quality and rejecting the unqualified

In the automatic production line, the workpiece sealed by heat or electromagnetic induction is transported to the infrared thermal image detection station, and the infrared thermal image camera takes the thermal image of the hot-sealed bottle cap, and the thermal image is transmitted to the image high-speed processing system for calculation and recognition. Through statistical analysis of the temperature distribution model of the thermal image of the aluminum foil after sealing, the sealing quality is judged to be qualified or unqualified, and the unqualified product is removed to the unqualified product area, and the qualified product will be transported to the next process.

Intelligent workstation type bottle sorting machine
(Mechanical fallen bottle removal)

Applicable bottle type: diameter 20-60mm
Height : 50-150mm
Production Capacity : ≤ 12000 bottles/hour

Jiangsu Tom Group is a full-service provider specializing in the research and development, design, and production of intelligent filling equipment. Since entering the intelligent filling industry in 1998, we have been dedicated to providing customers with exquisite engineering design, generations of advanced intelligent filling lines, warehousing and logistics software engineering, EPCM projects, and smart factories.
